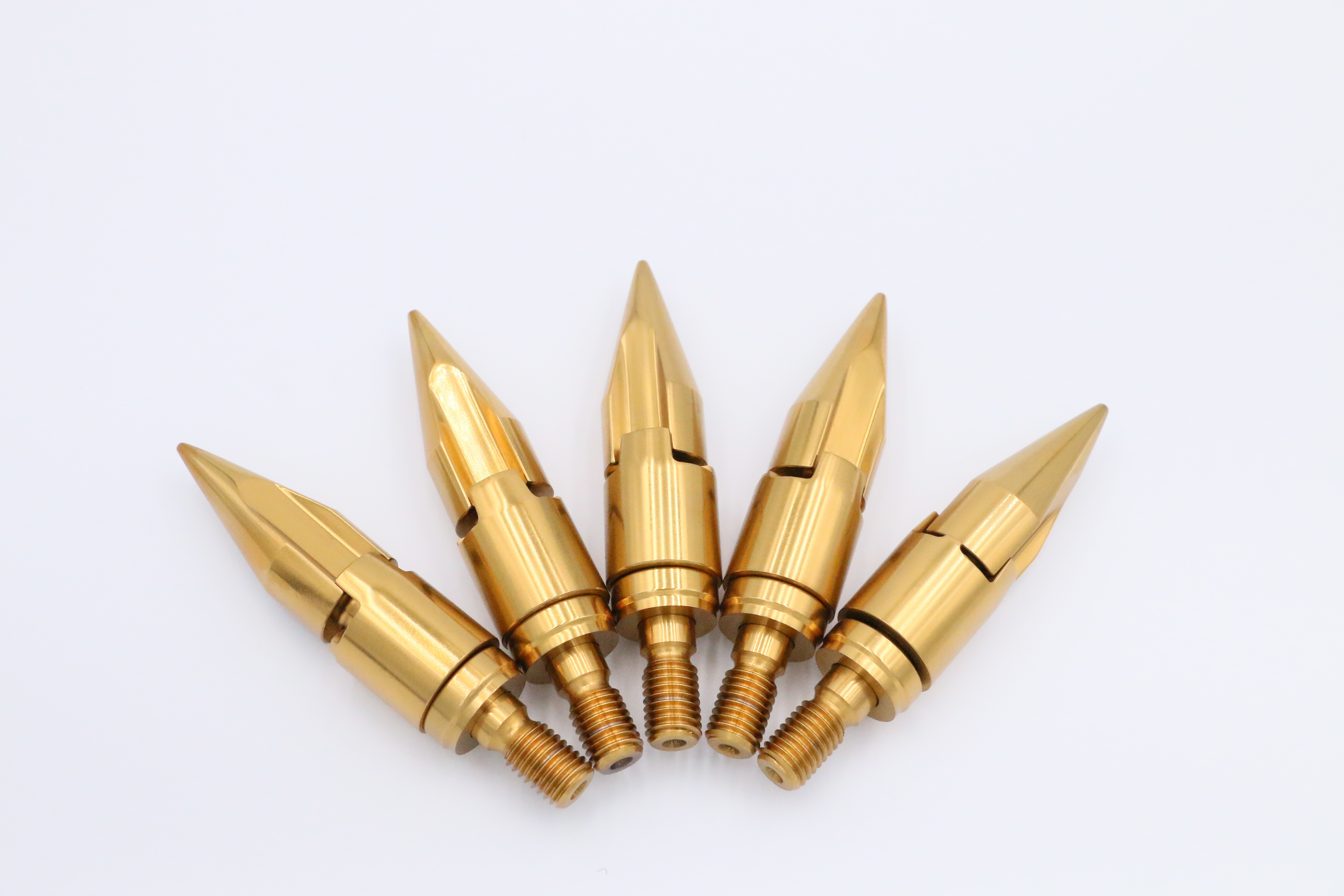

Alloy JSW Screw Tip Assembly Injection Machine Screw 25MM

Basic Information

Place of Origin:	Made in Suzhou, China
Brand Name:	KTL
Certification:	ISO9001
Model Number:	Diameter: 25

Minimum Order Quantity:	1 set
Price:	USD 168 / set
Packaging Details:	Composite eco-friendly wooden box
Delivery Time:	60 to 90 days
Payment Terms:	T/T
Supply Ability:	300 sets

Get Best Price

Chat Now

Detail Information

Component:

Check Ring Assembly

Material:

Powder Metallurgy Alloy

Feature:

Extremely High Wear Resistance

Hardness:

HRC 66

Highlight:

Alloy Screw Tip Assembly

JSW Screw Tip Assembly 25MM

injection machine screw ISO9001

Product Description

JSW Screw Tip Assembly

Technical Specification

Item	Details
Material	KTL-606B All-Hard Alloy
Main Alloy Composition	Cr 16.3%, V 3.4%, Mo 5%, Co 3.2%, Ni 2.2%
Heat Treatment Process	Quenching: 1020–1040°C Tempering: 540–570°C (≥3 times) Tail annealed at high temperature
Hardness	HRC 60 ± 2
Surface Treatment	Titanium coating
Key Features	Outstanding wear resistance Excellent corrosion resistance High hardness with good toughness Extended service life under high-load conditions
