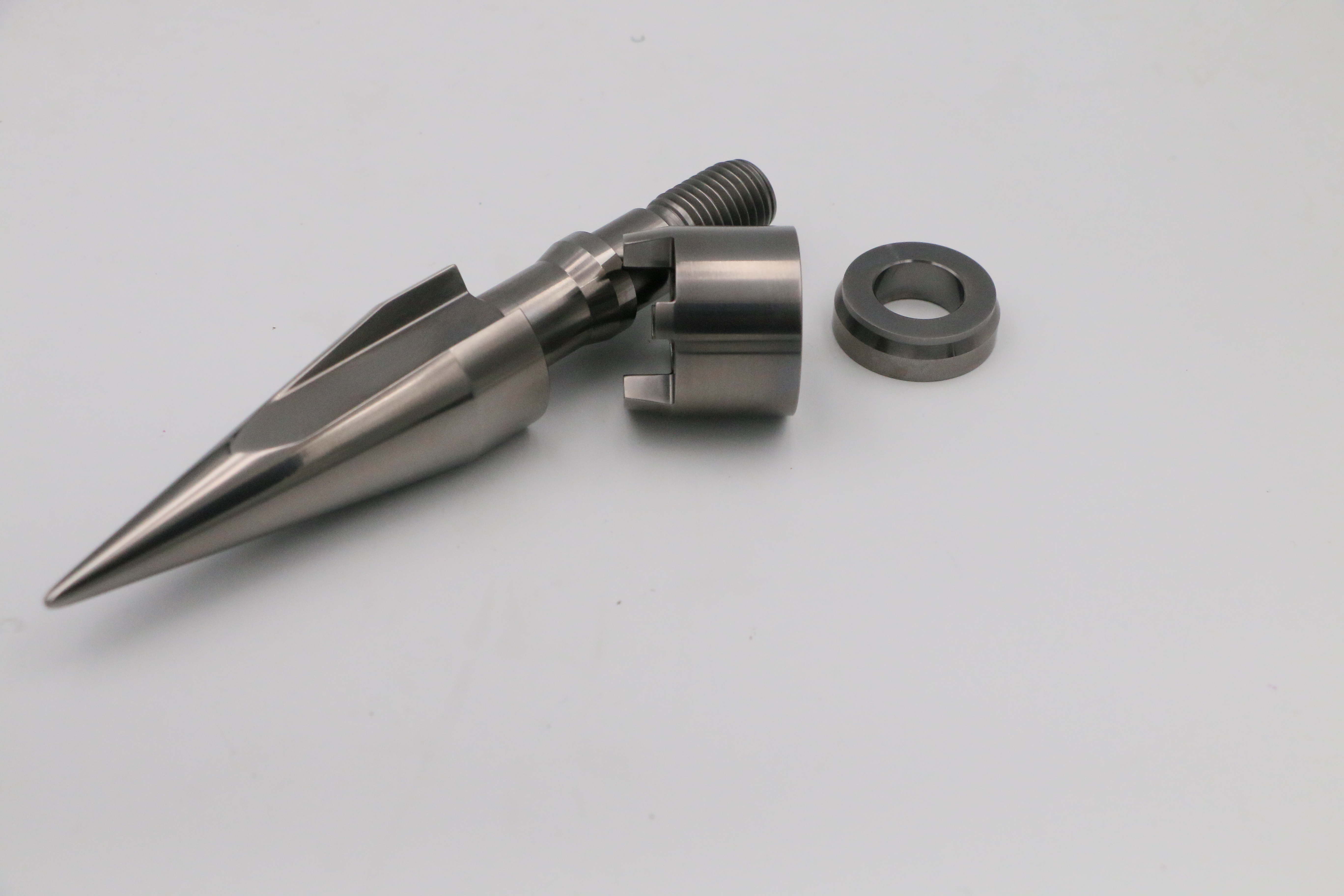

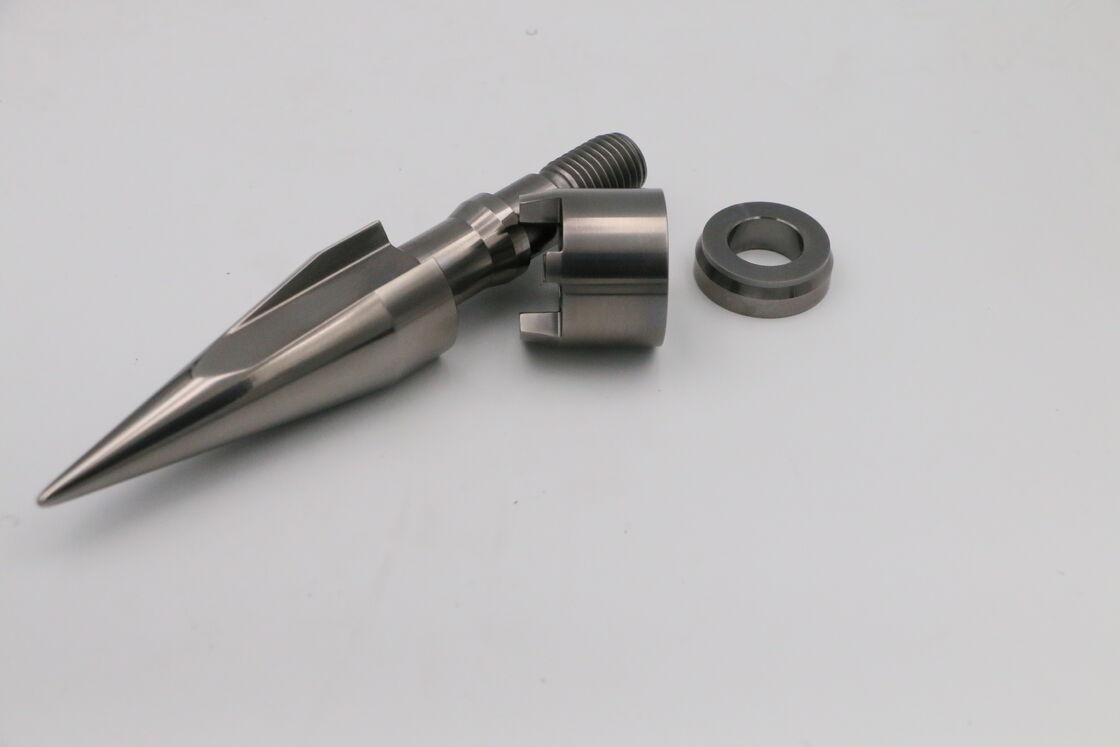

JSW 110T Injection Molding Machine Screw Tip Assembly

Basic Information

Place of Origin:	Made in Suzhou, China
Brand Name:	KTL
Certification:	ISO9001
Model Number:	Diameter: 32

Minimum Order Quantity:	1 set
Price:	USD 130 / set
Packaging Details:	Composite eco-friendly wooden box
Delivery Time:	60 to 90 days
Payment Terms:	T/T
Supply Ability:	300 sets

Get Best Price

Chat Now

Detail Information

Component:

Check Ring Assembly

Material:

Powder Metallurgy Alloy

Feature:

Extremely High Wear Resistance

Hardness:

HRC 66

Highlight:

injection molding machine screw tip assembly

jsw screw tip assembly

jsw molding machine screw

Product Description

Technical Specification

Item	Details
Material	KTL-606B All-Hard Alloy
Main Alloy Composition	Cr 16.3%, V 3.4%, Mo 5%, Co 3.2%, Ni 2.2%
Heat Treatment Process	Quenching: 1020–1040°C Tempering: 540–570°C (≥3 times) Tail annealed at high temperature
Hardness	HRC 60 ± 2
Key Features	Excellent wear resistance High corrosion resistance Superior strength and toughness Stable performance under high temperature and heavy load
