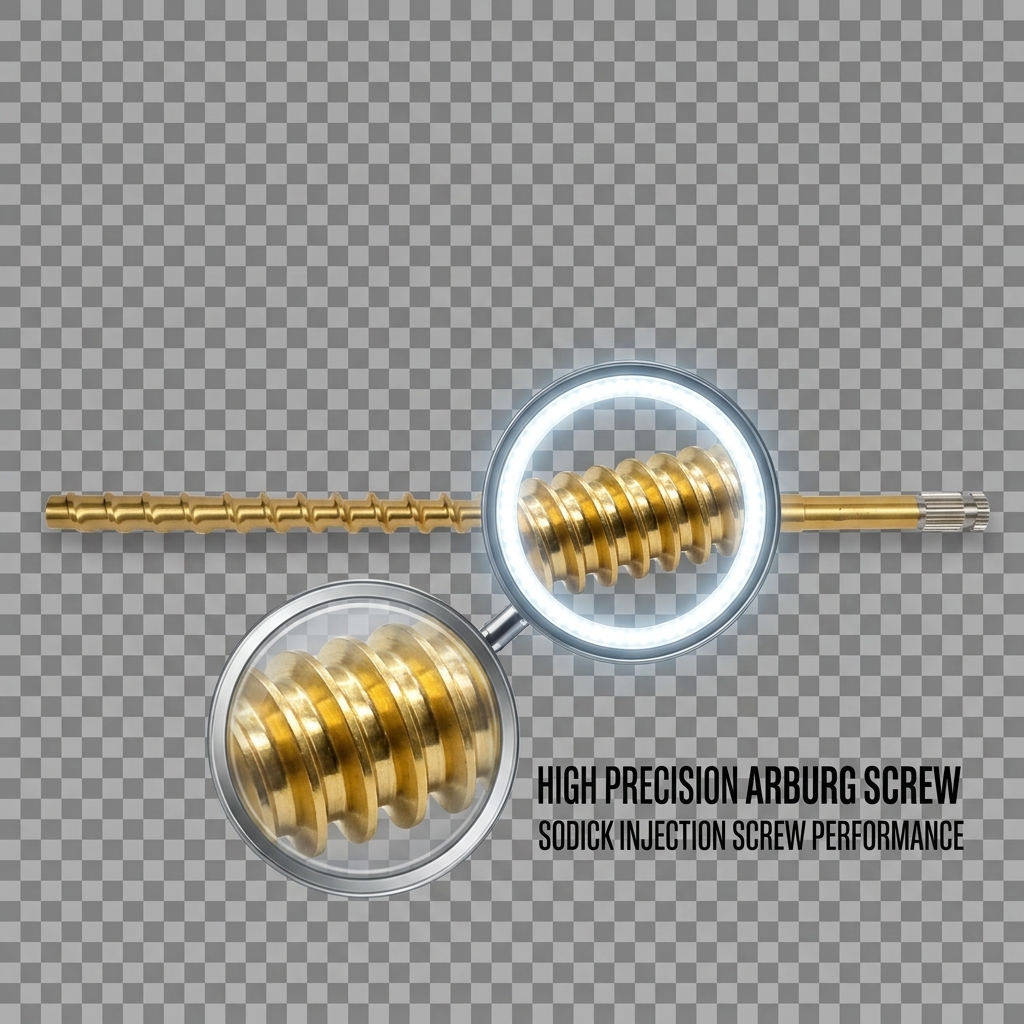

Optical Field Injection Screw Barrel HRC 48 - 52 Screw Plunger Injection Molding

Basic Information

Place of Origin:	Made in Suzhou, China
Brand Name:	KTL
Certification:	ISO9001
Model Number:	Diameter:25-80

Minimum Order Quantity:	1pc
Price:	Starting from 800 US dollars
Packaging Details:	Composite eco-friendly wooden box
Delivery Time:	60 to 90 days
Payment Terms:	T/T
Supply Ability:	300 pcs

Get Best Price

Chat Now

Detail Information

Component :	Screw 、Screw Tip Assembly 、Barrel Head (Flange) Nozzle	Material:	All-Hard Alloy
Main Alloy Composition:	Main Alloy Composition	Heat Treatment Process:	Quenching
Material :	KTL-ST30 Double Alloy (Fe-Ni Base)	Main Alloy Composition :	Inner Alloy: Fe, Ni, Cr, C, Co, B
Structure :	Double Alloy Structure (iron-nickel Base + Inner Alloy Layer)	Hardness :	Base: HRC 26–28
Highlight:	Optical field injection screw barrel , injection screw barrel HRC 48 , HRC52 screw plunger injection molding

Product Description

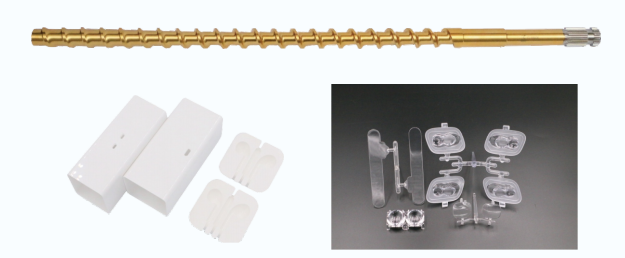

Wear-resistant and Corrosion-resistant Screw for Optical Field

Technical Specifications

Product Material	440C Upgrade
Material Origin	Japan
Main Components	Cr, Mo, V, etc.
Material Characteristics	The material undergoes high-temperature quenching, high-temperature tempering, and tail end high-temperature annealing softening treatment. The surface finish is excellent.
Heat Treatment Process	Quenching in vacuum at 1020-1050°C, followed by 550-570°C high-temperature tempering for more than three times. The tail undergoes high-temperature annealing softening treatment. Hardness: HRC 48-52 Surface water electroplated with chromium plating Surface hardness: HRC 62-65 Single-sided thickness: 0.03-0.05mm Excellent surface glossiness
Manufacturing Procedure	Rough turning Heat treatment CNC thread grinding Lathe finish CNC milling Grinding Polishing Electroplating Polishing Quality Control Packaging
Quality Control Process	Heat treatment indicators inspection Inspection of each machining process Inspection of finished products
Application Range	GF less than 15% of low-acid plastic pellets, such as PC, PMMA, transparency and fireproof materials, etc.
