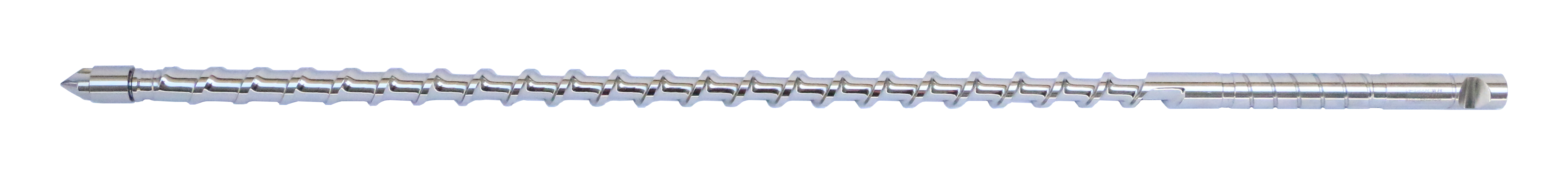

20mm Single Screw Barrel Quenching Tempering Injection Molding Screw

Basic Information

Place of Origin:	Made in Suzhou, China
Brand Name:	KTL
Certification:	ISO9001
Model Number:	Diameter: 20

Minimum Order Quantity:	1 set
Price:	USD 520 / set
Packaging Details:	Composite eco-friendly wooden box
Delivery Time:	60 to 90 days
Payment Terms:	T/T
Supply Ability:	300 sets

Get Best Price

Chat Now

Detail Information

Component :	Screw 、Screw Tip Assembly 、Barrel Head (Flange) Nozzle	Material:	All-Hard Alloy
Main Alloy Composition:	Main Alloy Composition	Heat Treatment Process:	Quenching
Material :	KTL-ST30 Double Alloy (Fe-Ni Base)	Main Alloy Composition :	Inner Alloy: Fe, Ni, Cr, C, Co, B
Structure :	Double Alloy Structure (iron-nickel Base + Inner Alloy Layer)	Hardness :	Base: HRC 26–28
Highlight:	20mm Single Screw Barrel , Quenching Single Screw Barrel , Tempering injection molding screw

Product Description

Arburg Injection Molding Machine Screw Assembly

Technical Specifications

Component	Material	Main Alloy Composition	Heat Treatment Process	Hardness	Surface Treatment	Key Features
Screw	KTL-202 All-Hard Alloy	Cr 7.8%, V 0.8%, Mo 2%, Co 0.8%	- Quenching: 1020–1050°C- Tempering: 550–570°C (≥3 times)- Tail annealed at high temperature	HRC 60 ± 2	Chrome plating	- Stable hardness and toughness- Improved corrosion resistance- Cost-effective for general applications
Screw Tip Assembly	KTL-202 All-Hard Alloy	Cr 7.8%, V 0.8%, Mo 2%, Co 0.8%	- Quenching: 1020–1050°C- Tempering: 550–570°C (≥3 times)- Tail annealed at high temperature	HRC 60 ± 2	Chrome plating	- Consistent wear resistance- Enhanced surface protection- Reliable performance under standard working conditions
