Hard Alloy Injection Machine Screw NISSEI 360T Thermal Stability Barrel In Injection Moulding

Basic Information

Place of Origin:	Made in Suzhou, China
Brand Name:	KTL
Certification:	ISO9001
Model Number:	Diameter: 56

Minimum Order Quantity:	1 set
Price:	USD 2,950 / set
Packaging Details:	Composite eco-friendly wooden box
Delivery Time:	60 to 90 days
Payment Terms:	T/T
Supply Ability:	300 sets

Get Best Price

Chat Now

Detail Information

Component :

Screw 、Screw Tip Assembly 、Barrel Head (Flange) Nozzle

Material:

All-Hard Alloy

Main Alloy Composition:

Main Alloy Composition

Heat Treatment Process:

Quenching

Highlight:

Hard Alloy injection machine screw

injection machine screw NISSEI 360T

thermal stability barrel in injection moulding

Product Description

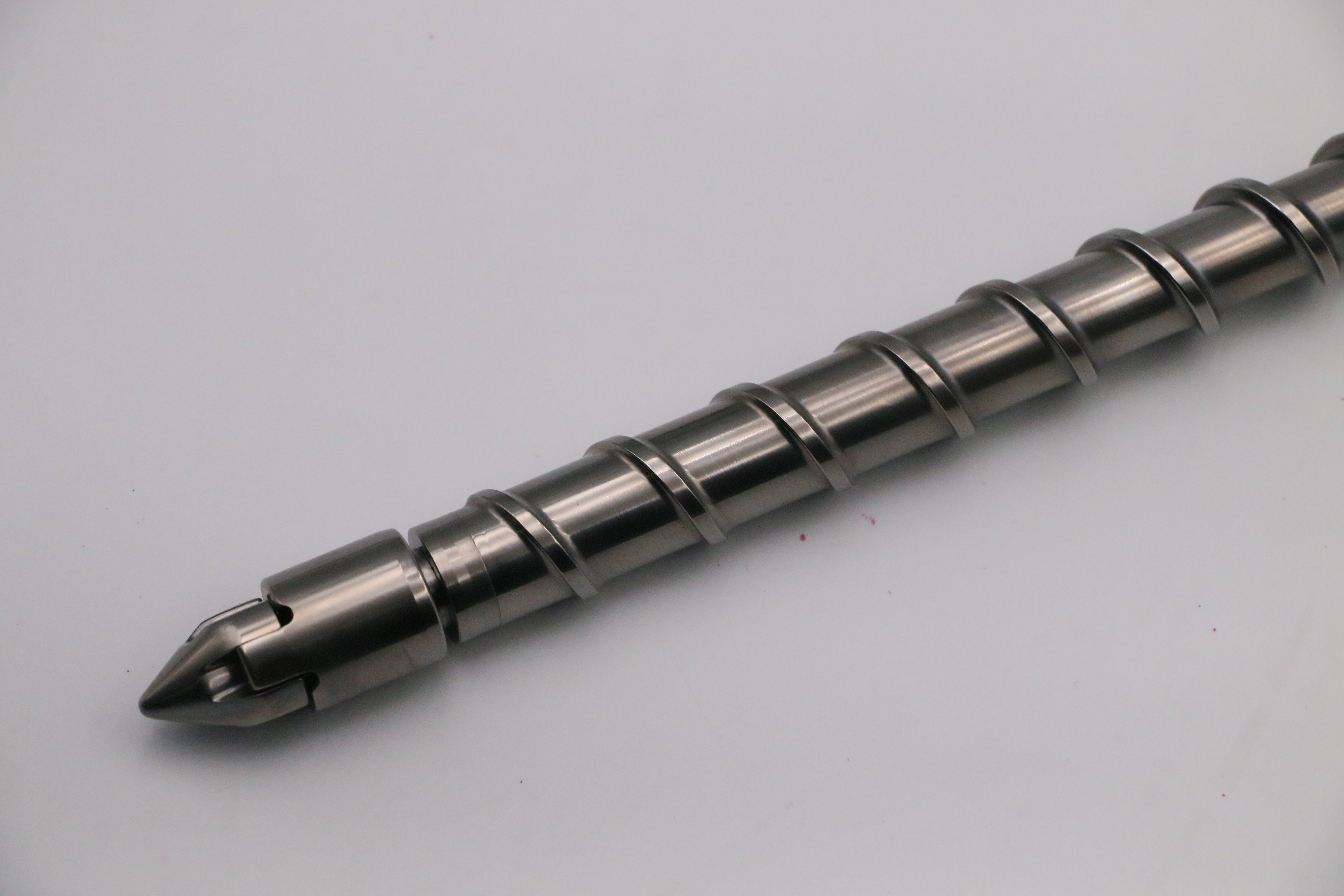

NISSEI 360T Injection Molding Machine Screw Assembly

Technical Specifications

Component	Material	Main Alloy Composition	Heat Treatment Process	Hardness	Special Process	Key Features
Screw	KTL-404 All-Hard Alloy	W 6.2%, Mo 5.3%, V 3%, Cr 4.2%, Co 2%	- Quenching: 1150–1180°C- Tempering: 580–620°C (≥4 times)- Tail annealed at high temperature	—	—	- Excellent wear resistance (high W & Mo)- High thermal stability- Suitable for high-load applications
Screw Tip	KTL-303 + PTA Alloy	Cr 7.8%, V 0.9%, Mo 1.3%, C, Ni	- Quenching: 1020–1050°C- Tempering: 550–570°C (≥3 times)- Thread annealed for softening	Base: HRC 50 ± 2Thread: HRC 38 ± 2PTA layer: ~HRC 58	PTA nickel-based alloy welding	- Reinforced wear points (PTA overlay)- Balanced toughness and hardness- Extended service life in abrasive conditions
Check Ring Assembly	KTL-505 All-Hard Alloy	W 9%, Mo 5%, V 3.2%, Cr 5%, Co 3%	- Quenching: 1150–1180°C- Tempering: 580–620°C (≥4 times)	—	—	- High wear resistance- Strong anti-deformation performance- Stable non-return function
