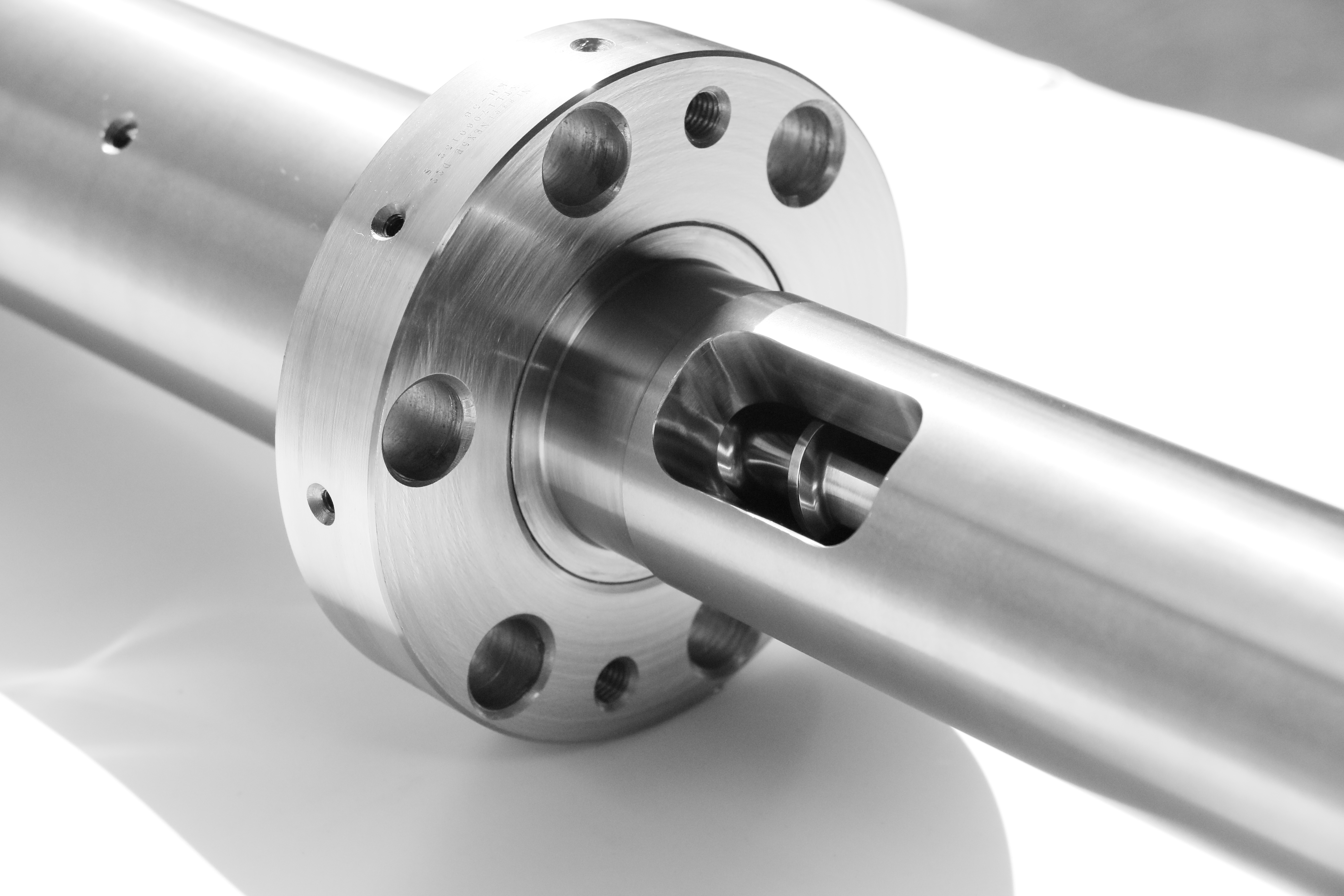

45mm Injection Molding Barrel And Screw SKD61 Barrel In Injection Moulding Machine

Basic Information

Place of Origin:	Made in Suzhou, China
Brand Name:	KTL
Certification:	ISO9001
Model Number:	Diameter: 45

Minimum Order Quantity:	1 set
Price:	USD 6,568 / set
Packaging Details:	Composite eco-friendly wooden box
Delivery Time:	60 to 90 days
Payment Terms:	T/T
Supply Ability:	300 sets

Get Best Price

Chat Now

Detail Information

Component :

Screw 、Screw Tip Assembly 、Barrel Head (Flange) Nozzle

Material:

All-Hard Alloy

Main Alloy Composition:

Main Alloy Composition

Heat Treatment Process:

Quenching

Highlight:

45mm injection molding barrel and screw

Chromium injection molding barrel and screw

SKD61 barrel in injection moulding machine

Product Description

NISSEI FNX140-36A Screw And Barrel Assembly

Technical Specifications

Component	Material	Main Alloy Composition	Heat Treatment Process	Hardness	Surface Treatment	Key Features
Screw	KTL-202B All-Hard Alloy	Cr 8.2%, V 1.2%, Mo 2%, Co 1%	- Quenching: 1020–1050°C- Tempering: 550–570°C (≥3 times)- Tail annealed at high temperature	HRC 60 ± 2	Titanium coating	- Improved wear resistance- Enhanced surface hardness- Cost-effective for general applications
Screw Tip Assembly	KTL-202B All-Hard Alloy	Cr 8.2%, V 1.2%, Mo 2%, Co 1%	- Quenching: 1020–1050°C- Tempering: 550–570°C (≥3 times)- Tail annealed at high temperature	HRC 60 ± 2	Titanium coating	- Consistent wear resistance- Better surface protection- Reliable performance
Barrel	KTL-ST30 Double Alloy (Fe-Ni Base)	Inner alloy: Fe, Ni, Cr, C, Co, B	—	Base: HRC 26–28Inner layer: HRC 59–61	—	- Double alloy structure- Good wear & corrosion resistance- Low thermal expansion- Stable under high temperature
Head (Flange)	Alloy Steel (Red Cross Grade)	—	Quenching and tempering	Base: HRC 30–32Cr layer: HRC 62–64	Chromium plating (0.05–0.08 mm)	- Enhanced surface wear resistance- Corrosion protection- Good structural strength
Nozzle	SKD61	—	- Quenching: 1020–1050°C- Tempering: 550–570°C (≥2 times)	HRC 50 ± 2	—	- Good thermal fatigue resistance- Stable performance under high temperature
