22mm Screw And Barrel NEX50-5E Heat Treatment Injection Molding Machine Screw

Basic Information

Place of Origin:	Made in Suzhou, China
Brand Name:	KTL
Certification:	ISO9001
Model Number:	Diameter: 22

Minimum Order Quantity:	1 set
Price:	USD 950 / set
Packaging Details:	Composite eco-friendly wooden box
Delivery Time:	60 to 90 days
Payment Terms:	T/T
Supply Ability:	300 sets

Get Best Price

Chat Now

Detail Information

Component :

Screw 、Screw Tip Assembly 、Barrel Head (Flange) Nozzle

Material:

All-Hard Alloy

Main Alloy Composition:

Main Alloy Composition

Heat Treatment Process:

Quenching

Highlight:

22mm Screw And Barrel

Screw And Barrel Heat Treatment

22mm Injection Molding Machine Screw

Product Description

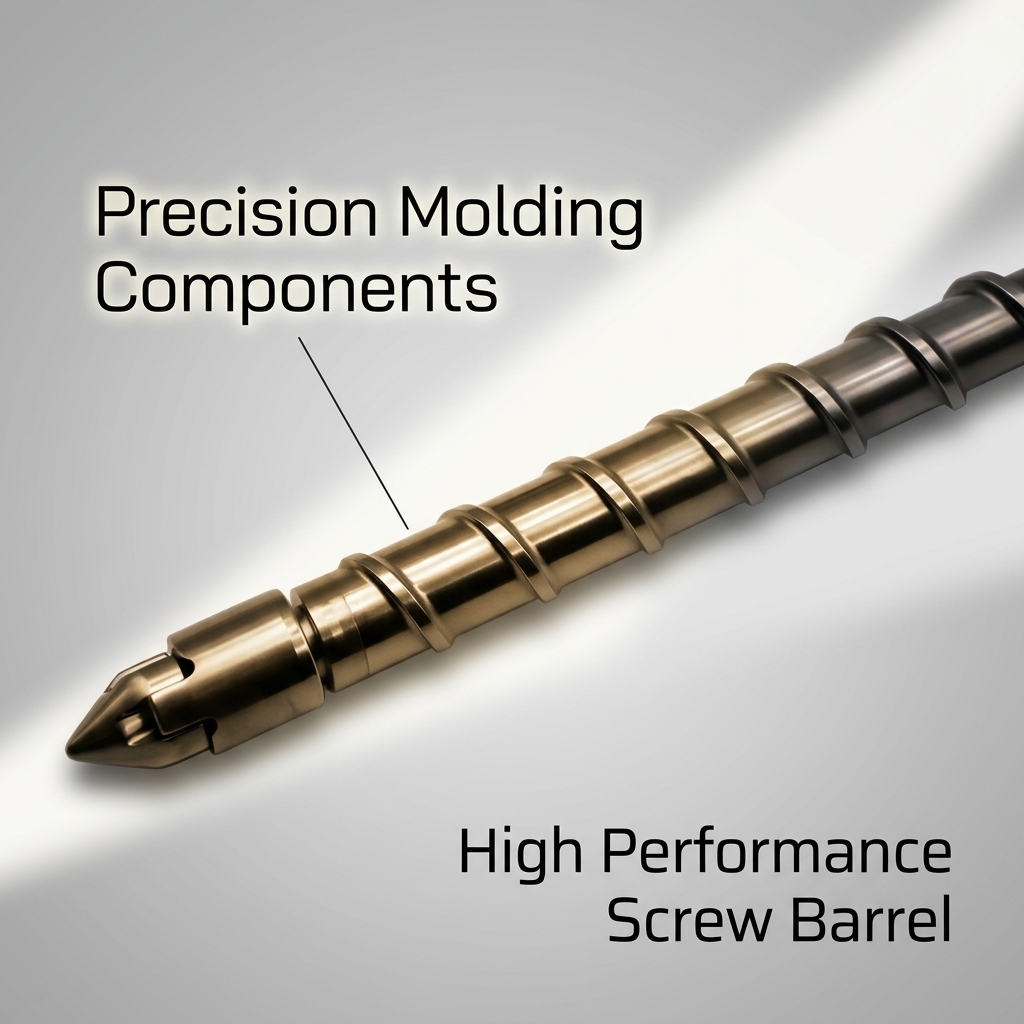

NISSEI NEX50-5E Injection Molding Machine Screw Assembly

Technical Specifications

Component	Material	Main Alloy Composition	Heat Treatment Process	Hardness	Special Process	Key Features
Screw	KTL-404 All-Hard Alloy	W 6.2%, Mo 5.3%, V 3%, Cr 4.2%, Co 2%	- Quenching: 1150–1180°C- Tempering: 580–620°C (≥4 times)- Tail annealed at high temperature	—	—	- Excellent wear resistance (high W & Mo)- High thermal stability- Suitable for high-load applications
Screw Tip Assembly	KTL-606BAll-Hard Alloy	Cr 16.3%, V 3.4%, Mo 5%, Co3.2%, Ni2.2%	- Quenching: 1020–1040°C- Tempering: 540–570°C (≥3 times)- Thread annealed for softening	HRC 60 ±	—	—
